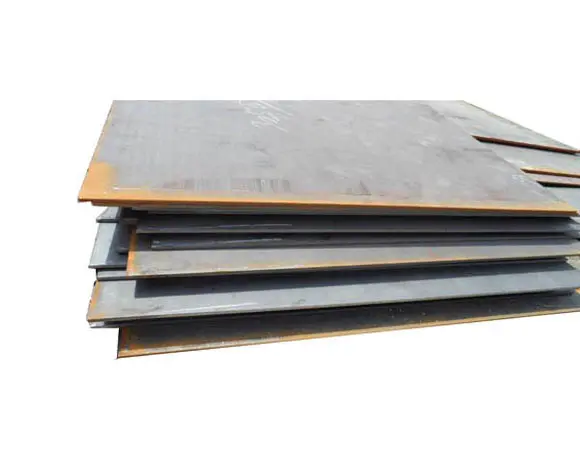

• Catalogue illustration for A516 Gr65 Boiler and pressure vessel steel
  • Catalogue illustration for A516 Gr65 Boiler and pressure vessel steel
  • Catalogue illustration for A516 Gr65 Boiler and pressure vessel steel
  • Catalogue illustration for A516 Gr65 Boiler and pressure vessel steel
  • Catalogue illustration for A516 Gr65 Boiler and pressure vessel steel
  • Catalogue illustration for A516 Gr65 Boiler and pressure vessel steel
  • Catalogue illustration for A516 Gr65 Boiler and pressure vessel steel
  • Catalogue illustration for A516 Gr65 Boiler and pressure vessel steel
  • Catalogue illustration for A516 Gr65 Boiler and pressure vessel steel
  • Catalogue illustration for A516 Gr65 Boiler and pressure vessel steel

ASTM A516 Grade 65 Pressure Vessel Steel Plate Material Certificate Checks

Pricing: Request an Order-Specific Quote

Reference: A516 Gr65 Boiler and pressure vessel steel. Check grade designation, product form and ordering requirements.

If the standard size steel materials can not meet your demands, We aslo supply A516 Gr65 Boiler and pressure vessel steel processing service. you can find one-stop solution for various customized steel processing requirements: Large vessels, structural parts, semi-products, components, manufacturing supporting ...

Processing: Specify drawing requirements with your enquiry.

E-mail: [email protected]

Whatsapp: +86 13569929107

A516 Gr65 Boiler and pressure vessel steel Description

A516 Gr65 Boiler and pressure vessel steel. Check the complete grade, product form, applicable edition and ordered dimensions.

Confirm the governing construction code, grade and class, design temperature, delivery heat treatment, test requirements and mill certificate.

Supply dimensions, lead time and inspection are confirmed against the order and mill offer.

Published tensile strength reference

ASTM A516/A516M-25 Grade 65 [450]450–585 MPa

Tensile strength in the SI system from ASTM scope 1.2. Apply the contractual edition and do not combine unit systems.

Legacy technical note · verification required

A516 Gr65 Steel belongs to the American standard boiler and pressure vessel steel plate. A516 Grade 65 follows the ASTM ASME technical standard, where 65 represents 65Ksi (Ksi represents mechanical strength unit). A516Gr65 pressure vessel steel has high strength, high toughness, wear resistance, fatigue resistance, impact resistance, weldability and cold forming performance, and is commonly used in the petrochemical container manufacturing industry.

Characteristics of A516 Grade 65 boiler steel

Strength: A516 Gr65 has high strength, mainly due to its chemical composition and heat treatment process. After appropriate heat treatment, this type of steel can achieve excellent mechanical properties and withstand various high-strength working environments.
Toughness: Although A516 Gr65 has high strength, it has not lost its toughness due to this. In the manufacturing process of pressure vessels, toughness is a crucial factor, as steel with insufficient toughness is prone to cracking when subjected to impact or vibration. The toughness of A516 Gr65 allows it to withstand high loads while resisting various impacts and vibrations.
Wear resistance: The wear resistance of A516 Gr65 is also very good, which allows it to maintain good working performance for a long time in friction and wear environments.
Fatigue resistance: Under repeated loads, A516 Gr65 can still maintain good fatigue resistance, thereby extending the service life of the equipment.
Impact resistance: A516 Gr65 has strong impact resistance, making it less prone to cracking or rupture even when subjected to large impact loads.

A516 Gr65 boiler and pressure vessel steel plate is widely used in various industrial fields. In the petrochemical container manufacturing industry, A516 Gr65 is used to manufacture pressure vessels, expansion joints, reactors, heat exchangers, petrochemical equipment, etc. In the field of petroleum machinery, it is used for manufacturing heads, boilers, power plant equipment, reaction kettles, etc. In addition, A516 Gr65 is widely used in the manufacturing of spherical tanks, nitrogen tanks, gas cylinders, liquefied gas tanks, etc.

Legacy technical note · verification required

When the thickness of A516 Gr65 steel plate is above 40mm, it is delivered in the normalized state by default. This is because in the normalized state, the grain size of the steel is finer and more uniform, and the comprehensive mechanical properties of the material are significantly improved, which is crucial for ensuring the safety and stability of the equipment.

ASTM A516 Gr65 pressure vessel steel plate is a high-quality boiler pressure vessel steel that combines high strength, good toughness, wear resistance, fatigue resistance, impact resistance, weldability, and excellent cold forming performance. It is an ideal material choice for various industrial fields. Whether in the petrochemical, petroleum, or power industries, the A516 Gr65 can meet various complex and demanding application requirements with its outstanding performance.

A516 Gr65 Boiler and pressure vessel steel Datasheet

Legacy technical note · verification required

Thickness: 0.1mm-300mm or as required

Legacy technical note · verification required

Width : 600mm-2500mm or customized

Legacy technical note · verification required

Length: 4000mm-12000mm or as required

Legacy technical note · verification required

Tolerance: Thickness :±0.5mm Width:±10mm Length :±10mm

Delivery condition: Hot rolled, controlled rolled, or normalized

Surface: Clean, blasting and painting as required

A516 Gr65 Boiler and pressure vessel steel Chemical composition

Legacy technical table · verification required

Confirm every value against the applicable edition, thickness and material certificate.

Legacy technical table
C Si Mn P S Al Cr Cu Ni Mo Nb Ti V
0.08/0.20 0.4 0.95/1.50 0.03 0.03 0.02 0.3 0.3 0.3 0.08 0.01 0.03 0.02

A516 Gr65 Boiler and pressure vessel steel Mechanical Properties

Legacy technical table · verification required

Confirm every value against the applicable edition, thickness and material certificate.

Legacy technical table
Grade Tensile strength (ksi)  Tensile strength (MPa) Yield strength (ksi) Yield strength (MPa) Elongation in 200mm (min)(%) Elongation in 50mm (min) (%)
A516 Grade 65  65-85 450-585 35 240 19 23

Equivalent Grade of A516 Gr65 Boiler and pressure vessel steel

Legacy technical table · verification required

Confirm every value against the applicable edition, thickness and material certificate.

Legacy technical table
ASTM ASME DIN17155 EN10028 BS1501
A516 Gr65 SA516 Gr65 17MN4 P295GH 460A/B

Source and scope

  • ASTM A516/A516M-25, pressure vessel plates · Scope, paragraphs 1.1–1.5. The ASTM scope lists Grades 55 [380], 60 [415], 65 [450] and 70 [485] for welded pressure-vessel plate where notch toughness is important. Apply one unit system from the specified edition.

Apply the cited scope to the matching designation and form. Confirm any remaining technical values with the applicable edition or material certificate.
